Chromecast Radio control using a Logitech Harmony Elite (and Home Assistant)

3 minute read

Building further on my CC Radio, I wanted to integrate this with my Logitech Harmony Elite (+hub) remote, so that no interaction is needed with Home Assistant itself to work the radio.

The solution consists of several parts:

  • Using a sensor to keep track of what the Harmony Remote is set to
  • allowing channel changing through the Harmony Remote
  • allowing volume changing through the Harmony Remote

Sensor configuration

First, you’ll need a sensor to keep track of which activity the Harmony Remote is set to.

sensor:
  - platform: template
    sensors:
      logitech_harmony_elite:
        value_template: '{{ state_attr("remote.logitech_harmony_elite", "current_activity") }}'

Allowing channel changes

Next up, allowing changing the channel. In the LoveLace interface we have a drop-down for this, but we want to use the Channel-Up and Channel-Down buttons on the Harmony Remote…

Emulated Roku

Emulated Roku to the rescue!

This basically fakes a Roku Media Player, which you can then use together with the Harmony Remote.

Configuring the integration in Home Assistant is detailed in the documentation. I did have to do some additional steps, since my Home Assistant is on a different network than the Harmony Hub. I do have a Linux VM on both networks, which functions as a proxy.

Proxy config

After activating the integration through the web interface, you’ll need to edit /config/.storage/core.config_entries, and add an advertise_ip entry under data with the IP address of your proxy.

{
    "connection_class": "local_push",
    "data": {
        "advertise_ip": "IP.OF.YOUR.PROXY",
        "listen_port": 8060,
        "name": "Home Assistant"
    },
    "domain": "emulated_roku",
    "entry_id": "xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx",
    "options": {},
    "source": "user",
    "system_options": {
        "disable_new_entities": false
    },
    "title": "Home Assistant",
    "unique_id": null,
    "version": 1
}

After this, you’ll also need to do the actual proxying. I didn’t want to run any additional software, so I just put a few iptables rules. NOTE: this is just a subsection of rules in the script, make sure you properly integrate this with your own firewall!

In this script, LAN_IF is my main LAN interface, IOT_IF is the IOT network interface:

#!/bin/bash

LAN_IF=ens3
IOT_IF=ens4

LAN_IP=$(ip -4 addr show ${LAN_IF} | grep -oP "(?<=inet ).*(?=/)")
IOT_IP=$(ip -4 addr show ${IOT_IF} | grep -oP "(?<=inet ).*(?=/)")

HARMONY=IP.OF.HARMONY.HUB
HASSIO=IP.OF.HA.INSTALLATION
ROKU_PORT=8060

iptables -t nat -A PREROUTING  --protocol tcp --source ${HARMONY} --dport ${ROKU_PORT} -i ${IOT_IF} -j DNAT --to ${HASSIO}:${ROKU_PORT}
iptables -t nat -A PREROUTING  --protocol udp --source ${HARMONY} --dport ${ROKU_PORT} -i ${IOT_IF} -j DNAT --to ${HASSIO}:${ROKU_PORT}

iptables -t nat -A POSTROUTING --protocol tcp -d ${HASSIO}         -o ${LAN_IF} -j SNAT --to ${LAN_IP}
iptables -t nat -A POSTROUTING --protocol udp -d ${HASSIO}         -o ${LAN_IF} -j SNAT --to ${LAN_IP}

You’ll also need to advertise your emulated_roku to let the Harmony Remote find it.

python3 advertise_ip.py --api-ip IP.OF.YOUR.PROXY --api-port 8060

After this, you can scan your network with the Harmony Remote to configure it.

Integrating emulated_roku in the activity

I’ll leave this as an exercise for the reader - you’ll need to recreate your activity and include the new Roku entertainment device.

Automating the channel changes

Once again, I’ll be using Node-RED to handle this. The emulated_roku will return a roku_command event through Home Assistant, so we can monitor that, and use the sensor.logitech_harmony_elite defined above to only trigger on the right activity.

Home assistant also has built-in input.select_next and input_select.previous service calls, allowing us to just re-use the drop-down input_select list created in the previous post.

Flow

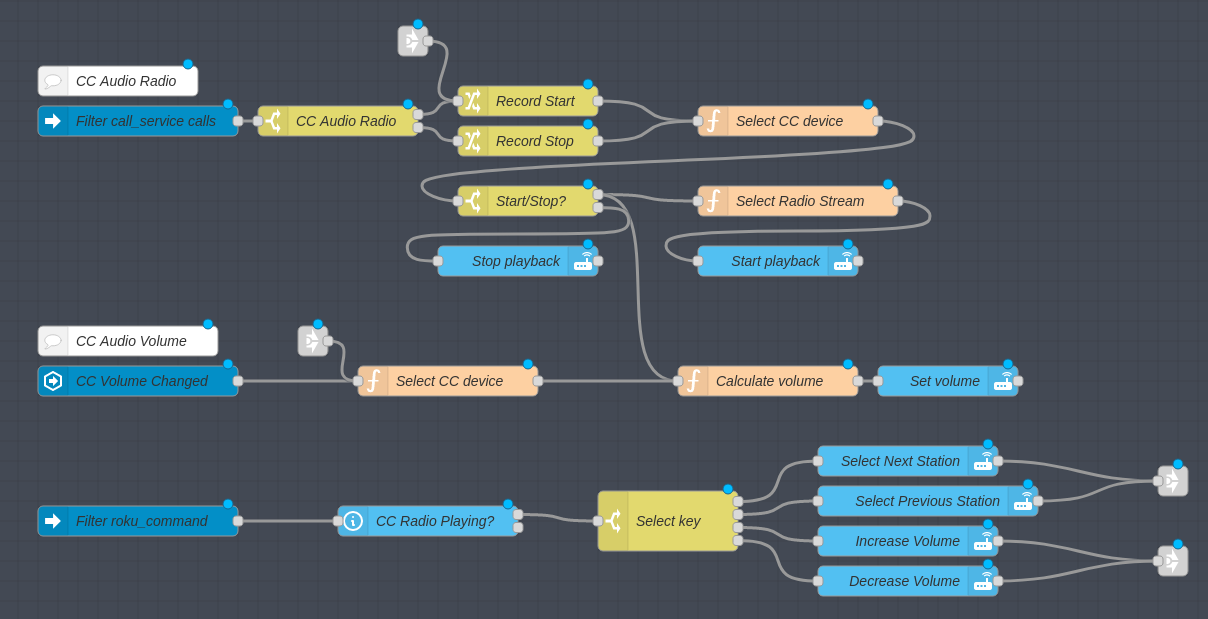

Node-RED flow

Json export
